V1.42 Orange5 Super Pro Programmer Full Activation Orange 5 Professional ECU Programming Device Activate Full Authorization

What is Orange 5 Super Pro Programmer:

Orange 5 super pro programmer is a professional programming device for memory and microcontrollers. Unique feature of the current series programmers is built-in macro language for writing down protocols, which gives fast and easy capability to add new types of micro schemes, precisely meeting manufacturers’ requirements to read/write algorithms.

Why choose Our Orange 5 Super Pro 1.42:

1. Updated on the basis of v1.38, adding more supported chips, compatible with 1.38 hardware, it is more professional and the programmer you want.

2. Adds new licenses : 08-airbag and 09-dashboard, A-car radio, B-airbag, C- immo&pin, D-car mileage, E-motorbike mileage, F- dash tractor

3. Adds more Renesas licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others

4. Add V850E2-S BYPASS Adapter.

5. Orange5 Super Pro Support more scripts and Wiring diagrams, Normally Orange5 v1.36 just about 60MB ,but V1.35 super pro is 2GB

Orange 5 New Version 1.42 Deatails:

1. Software Version: Orange 5 super pro v1.42 full function

2. V1.42 dongle and V1.42 software need to be used together.

3. Language:English, Russian

4. Systems:WIN 10/WIN7 （32bit and 64 bit）

Software Licenses:

MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW

Orange 5 V1.42 New license:

MCU ( Infineon，ST and MicroChip)
Renesas: H8SX，HD64F，V850 UART，V850 SPI，RH850 V3，RL78
Special_05
AIR-BAG
Dash
Fujitsu
F-DASH Tractor
EEPROM
A/B/C/D/E moudels

Orange5 V1.42 Software download and installation link

Orange 5 1.42 Adds More Ecu Mcu List Program:

Orange5 Plus V1.42 Programmer Full License>>>

Notice:

1. The firmware is the same as 1.38 and 1.42. It cannot be upgraded. If you click Upgrade, the firmware will lock the machine and only the software can be upgraded. The new version is compatible with firmware versions 1.38 and 1.42.

2. If you bought 1.38 before, you can buy a 1.42 dongle + software upgrade, install the new 1.42 software and plug in the dongle to use it.

3. 1.42 software supports more models than 1.38 software and requires more licenses.

4. The dongle can only be used with version 1.42. It can also be used after upgrading version 1.38 to version 1.42

Orange5 Super Pro Burst Points:

1. Adds new licenses : 08-air-bag and 09-dashboard, A-car radio, B-air-bag, C- immo&pin, D-car mileage, E-motorbike mileage, F- dash tractor
2. Adds more Renesas licenses for H8SX, HD64F, V850 UART, V850 SPI, RH850 V3, RL78 than others
3. Support more scripts and Wiring diagrams, v1.36 just about 60MB, but super pro is 2GB.

4. With USB Dongle. Dongle uses 08-air-bag and 09-dashboard moudels.

Orange5 Technical Info:

* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0…5.0V ), programming voltage (2.0…21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0…5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0…5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]

Orange5 Plus Feature:

Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
“Echo” mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn’t need to be installed
Supports Orange5 programmer in emulation mode.

Orange5 Plus Vehicle List:

A-udi, B-MW, Chery, Chevrolet, Chrysler, Skoda, Citroen, DAF, Dodge, Fiat, Ford, SsangYong, Gilera, Great Wall, Hyundai, Kia, Honda, Jeep, Suzuki, Lancia, Mahindra, B-enz, Nissan, To-yota, Opel, Peugeot, Piaggio, Renault, Seat

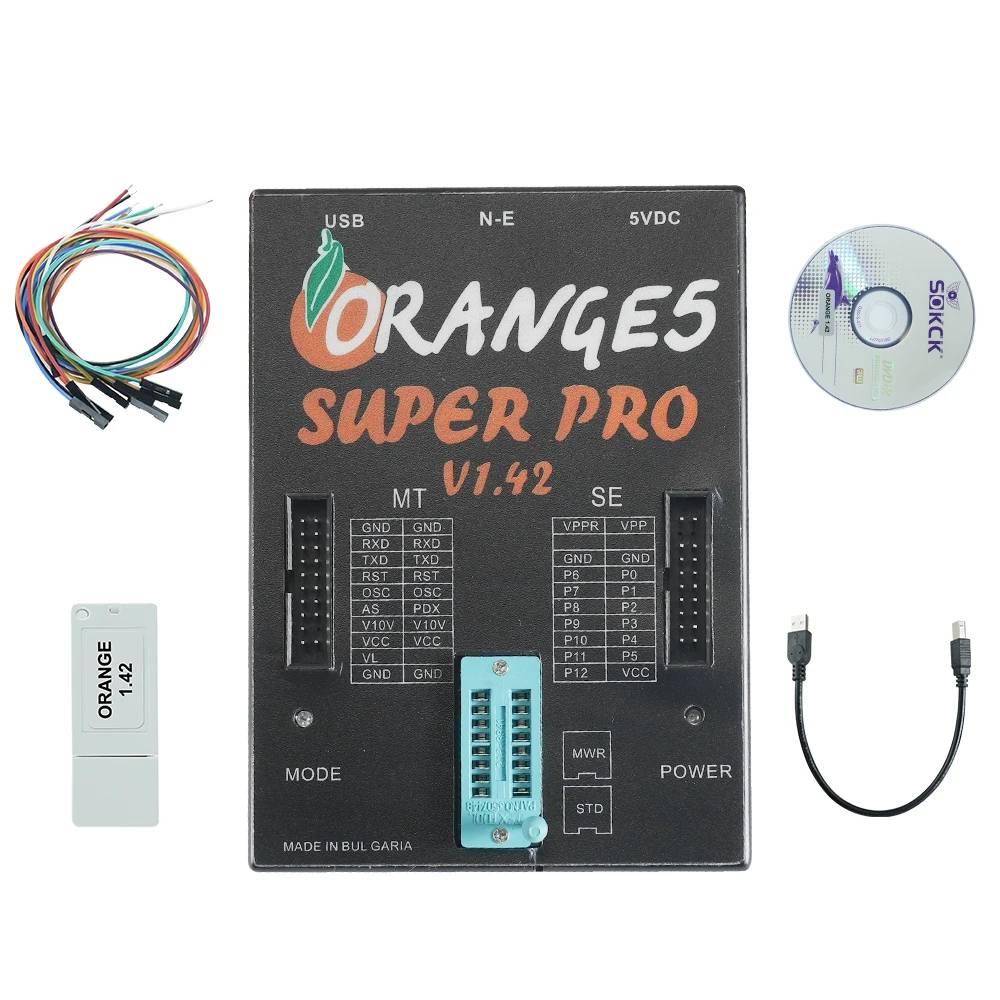

Orange5 Plus Package List:
