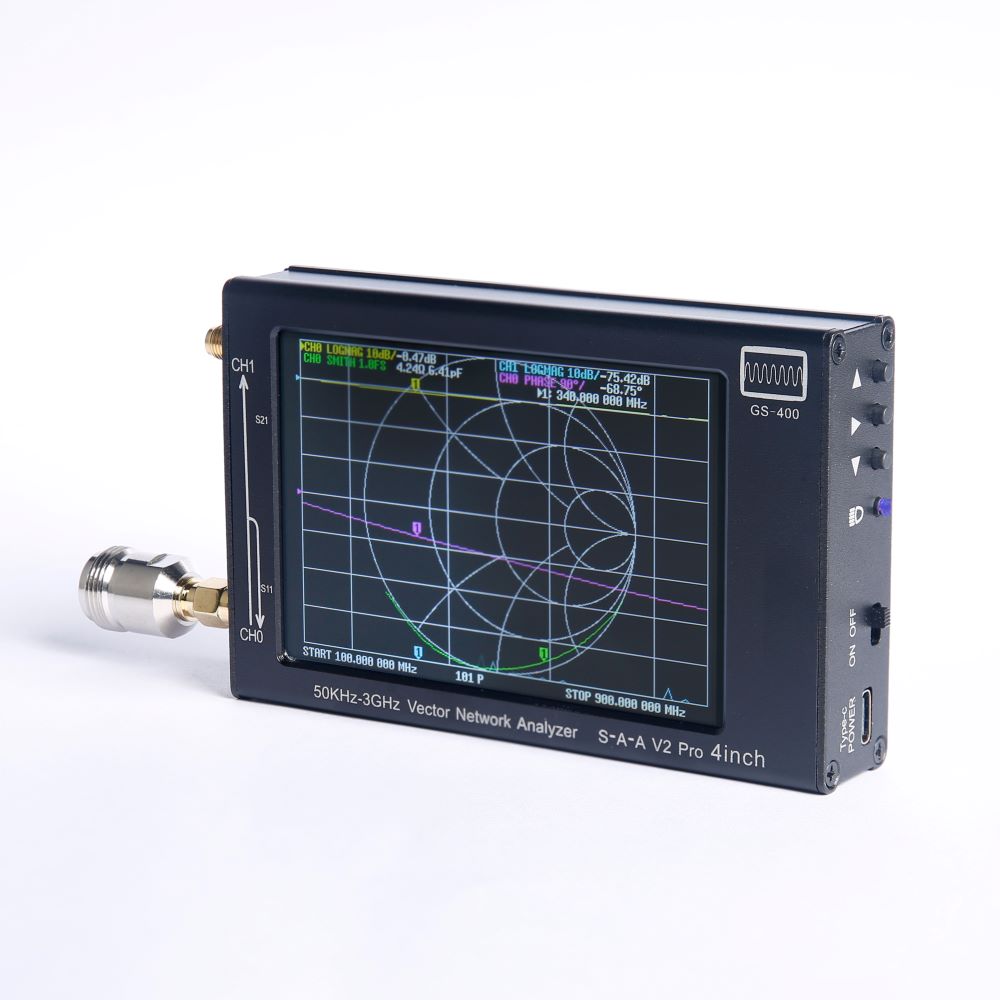

New 4-inch display GS-400 NanoVNA V2 3GHz SAA-V2 Version 2.2
Product Features
1. Use 0.5ppm TCXO: In order to ensure the frequency accuracy of high frequency measurement using 0.5ppm TCXO network analyzer.
2. It uses an exquisite aluminum alloy shielded shell, with a reasonable structure and convenient operation, which can fully protect the internal precision circuit and has a more reasonable definition of the external interface.
3. High-performance calibration kit: The network analyzer is equipped with a high-performance calibration kit to ensure that the calibration SWR is less than 1.03 when it reaches 3GHz.
4. Good amplitude and phase stability: 2 customized high-performance SS405 SMA RF cables can provide good amplitude and phase stability.
5. Updated to crystal two-color LED indicator
6. The latest Type-c data cable is used, and the performance of connecting to the computer is better.
7. Easy to carry: equipped with high-grade plastic outer packaging, the network analyzer is easier to carry and store.
Product description
Used for *GS-400 V2 Pro 4inch vector network analyzer
NanoVNA V2 3GHz is based on the LGPL license agreement, based on the design of OwOComm, and has developed and produced a vector network analyzer that is more convenient to carry and use. The vector network analyzer used for *SAA-2/NanoVNA uses a user interface similar to that used for NanoVNA, but uses a different technical architecture. The network analyzer for SAA-2 / NanoVNA V2 will not load the initial calibration data at startup, and will not automatically insert the calibration data after the user changes the frequency. After each startup and frequency change, you must recalibrate or recall the calibration data. Please read the instructions carefully before use to avoid damage to the equipment.
Product Specifications
Model: GS-400 V2 Pro
Frequency range: 50kHz-3GHz
Frequency tolerance: less than 2ppm
Frequency stability: less than 0.5ppm
System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Scanning speed: 100 points/sec

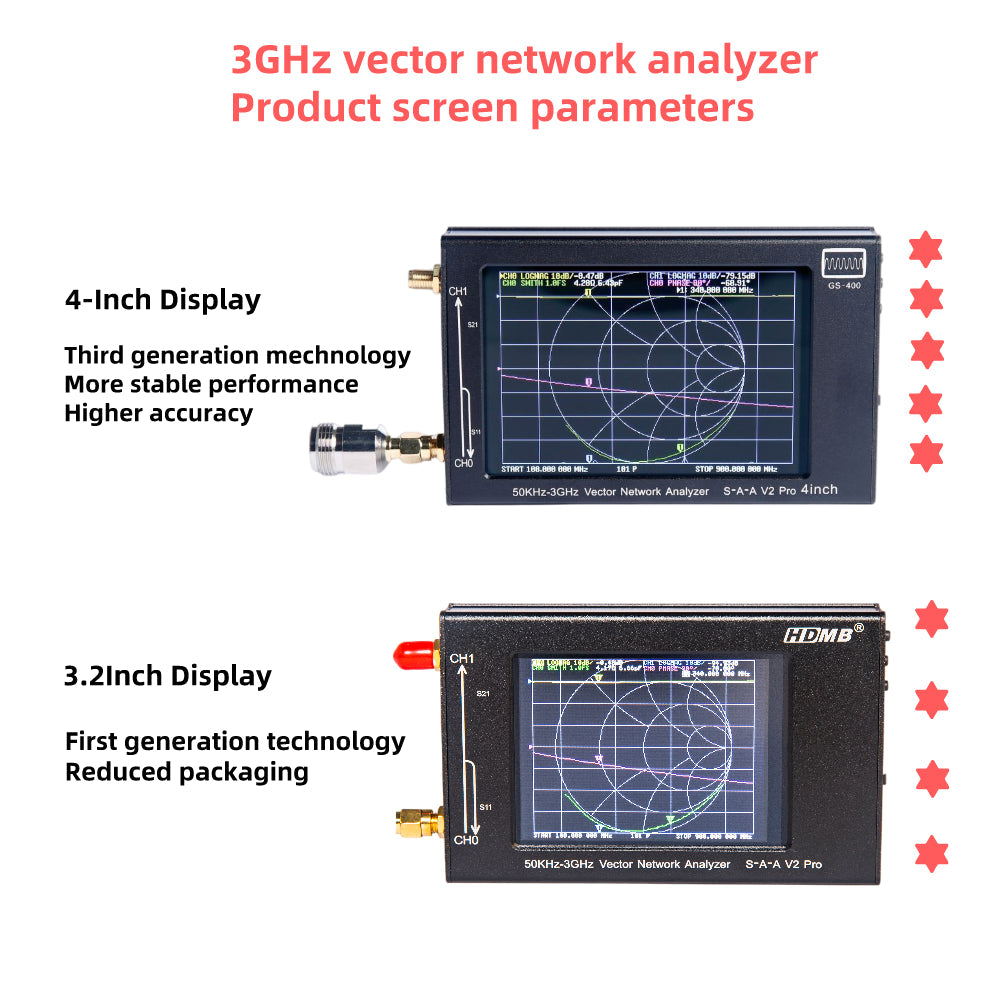

Display: about 4.0 inches LCD TFT, (320RGBx480 resolution and 65Kcolor)
USB interface: USB interface: USB Type-C communication mode: CDC (serial)
Power supply: USB, maximum charging current 1A
Battery: 2000mAh Lithium ion (certified by sea and air transportation)
Battery connector: JST-XH 2.0mm Maximum scanning point (on the device): 201
Maximum scanning point (USB): 1024
Port 2 return loss (1.5GHz): 20dBtyp
Port 2 return loss (3GHz): minimum 13dB Project size: 142 x 75x 23mm / (5.1 x2.9×0.9in)
Product weight: 208g/(7.4oz.av)
Packing size: 250×142×40mm /(9.7* 5.6 * 2in)
Package weight: 470 grams (17 ounces average)
Packing List
1 * GS-400 V2 Pro vector network analyzer host
1 * Type-C USB data cable
2 * SMA cable straight-through connector
1 * SMA simple calibration setting is open OPEN
1 * SMA simple calibration setting SHORT
1 * SMA simple calibration kit will LOAD
1 * SMA female connector to female connector
1 * N female conversion head SMAN/SMA-KJ
Product Features
1. Use 0.5ppm TCXO: In order to ensure the frequency accuracy of high frequency measurement using 0.5ppm TCXO network analyzer.
2. It uses an exquisite aluminum alloy shielded shell, with a reasonable structure and convenient operation, which can fully protect the internal precision circuit and has a more reasonable definition of the external interface.
3. High-performance calibration kit: The network analyzer is equipped with a high-performance calibration kit to ensure that the calibration SWR is less than 1.03 when it reaches 3GHz.
4. Good amplitude and phase stability: 2 customized high-performance SS405 SMA RF cables can provide good amplitude and phase stability.
5. Updated to crystal two-color LED indicator
6. The latest Type-c data cable is used, and the performance of connecting to the computer is better.
7. Easy to carry: equipped with high-grade plastic outer packaging, the network analyzer is easier to carry and store.
Product description
Used for *GS-400 V2 Pro 4inch vector network analyzer
NanoVNA V2 3GHz is based on the LGPL license agreement, based on the design of OwOComm, and has developed and produced a vector network analyzer that is more convenient to carry and use. The vector network analyzer used for *SAA-2/NanoVNA uses a user interface similar to that used for NanoVNA, but uses a different technical architecture. The network analyzer for SAA-2 / NanoVNA V2 will not load the initial calibration data at startup, and will not automatically insert the calibration data after the user changes the frequency. After each startup and frequency change, you must recalibrate or recall the calibration data. Please read the instructions carefully before use to avoid damage to the equipment.
Product Specifications
Model: GS-400 V2 Pro
Frequency range: 50kHz-3GHz
Frequency tolerance: less than 2ppm
Frequency stability: less than 0.5ppm
System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
Scanning speed: 100 points/sec
Display: about 4.0 inches LCD TFT, (320RGBx480 resolution and 65Kcolor)
USB interface: USB interface: USB Type-C communication mode: CDC (serial)
Power supply: USB, maximum charging current 1A
Battery: 2000mAh Lithium ion (certified by sea and air transportation)
Battery connector: JST-XH 2.0mm Maximum scanning point (on the device): 201
Maximum scanning point (USB): 1024
Port 2 return loss (1.5GHz): 20dBtyp
Port 2 return loss (3GHz): minimum 13dB Project size: 142 x 75x 23mm / (5.1 x2.9×0.9in)
Product weight: 208g/(7.4oz.av)
Packing size: 250×142×40mm /(9.7* 5.6 * 2in)
Package weight: 470 grams (17 ounces average)
Packing List
1 * GS-400 V2 Pro vector network analyzer host
1 * Type-C USB data cable
2 * SMA cable straight-through connector
1 * SMA simple calibration setting is open OPEN
1 * SMA simple calibration setting SHORT
1 * SMA simple calibration kit will LOAD
1 * SMA female connector to female connector
1 * N female conversion head SMAN/SMA-KJ
