XPROG M V6.26 V6.50 V6.17 is 2022 new released version of Xprog M ECU programmer which has added more new authorizations.
XPROG M V6.26 V6.50 Add New Authorization Overview
1. Latest Version:
Software: V6.26, Firmware: V5.9
Software: V6.50 ，Firmware: V5.9
2. With USB Dongle, No need to activate
3. Language: English
4. Operating System: WinXP/Win7 64
XPROG M V6.26 Software Download Link
XPROG M V6.50 Software Download Link
XPROG M V6.50 V6.26 Highlights:
1. With USB Dongle, No need to activate, more secure&protect software.
2. Add new authorization: AUTH-0028-1 Renesas V850 Authorized and AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
3. Newest version can decrypt new version For BM-W CAS4
XPROG-M V6.50 V6.26 windows system required as below:
1. Windows system should be WinXP 32bit OR Win7 64 bit, all the patch software for the windows system should be installed already and the windows properly works well…
2. The windows system MUST be with at lest 2 partitions (except the CD ROM.),can not work if only one space in computer.
3. Can not be working with virtual harddisk.
XPROG M V6.50 V6.26 Using Tips:
1. You are not allowed to use this newest dongle to update the older version Xprog to V6.50 V6.26
2. Close all of the computer anti-virus software. If not, X-prog software may be killed.
3. Uninstall all of the old version xprog-m or xprog box software before you install V6.50 V6.26 software we provide, because our xprog-box hardware is not compatible with other lower or higher version software, otherwise the hardware will be damaged and will lose its warranty…
4. Never try to UPDATE, the hardware will be damaged if you want to try to update it online, then you will lose its warranty.
Xprog V6.50 V6.26 Software Installation Tips:
1. MUST Connect Internet
2. PC Time MUST adjust to Accurate Local Time
3. MUST first install 6.26 registry, then run V6.26 Software
4. Before install V6.50 V6.26, please make sure MUST uninstall all old version xprog driver and software.
5. If doesn’t uninstall old xprog, once plug V6.50 V6.26 to PC, the device authorization will lose and hardware will be damaged. Only support to send back for repair.
6. CD have video instruction, please MUST follow every steps.
There are 3 steps MUST DO Right.
Step 1:
When install PDF File and runs AcroRead.msi, MUST CLICK the last optional “Manually check for and install updates(not recommened)”
(DO NOT choose others, otherwise it will lost authorization, device damaged)
Step 2:
Please MUST CLICK Registry File “5.86registry.reg“. So it can avoid lose certificate.
Step 3:
Set up driver for Twice. DO THE SAME STEPS twice (MUST follow video EXACT steps)
Note:
If you meet software message shows “Waiting Certificate” that means you did not run software correct, Certificate already lost. It only flash IC Chip or send back for repair. So please Must pay attention to it.
XPROG M V6.50 V6.26 Authorizations:
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BM-W EWS3 authorization
AUTH-0009 ATMEGA family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, …) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, …) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage, Chassis number (VIN), serial number and PIN code).
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-3 9S12XE SECURITY
AUTH-0024-4 MC9S12HA/HY/P
AUTH-0025-1 MPC/SPC5xxx Authorized 2016/3/13
AUTH-0027-1 HC(S)908 update Authorized 2016/3/13
AUTH-0027-2 HC(S)908 sercurity Authorized 2016/3/13
AUTH-0028-1 Renesas V850 Authorized 2017/10/9
AUTH-0028-2 Renesas SuperH Authorized 2017/10/9
XPROG M V6.50 V6.26 Adapters:
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Additional adaptor for 5M48H P-Flash
ADP-0019 Rev.A
EWS3 adaptor
EEPROM adaptor
QFP28 adaptor
QFP64 adaptor
QFP80 adaptor
QFP112 adaptor
QFP144 adaptor

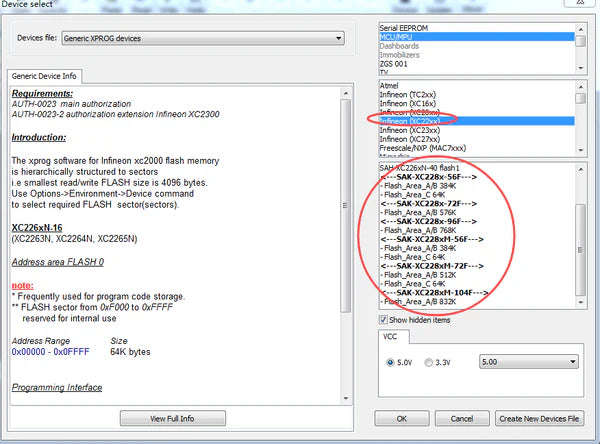

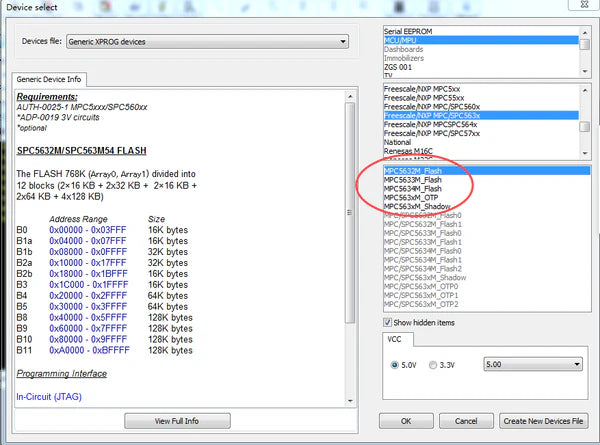

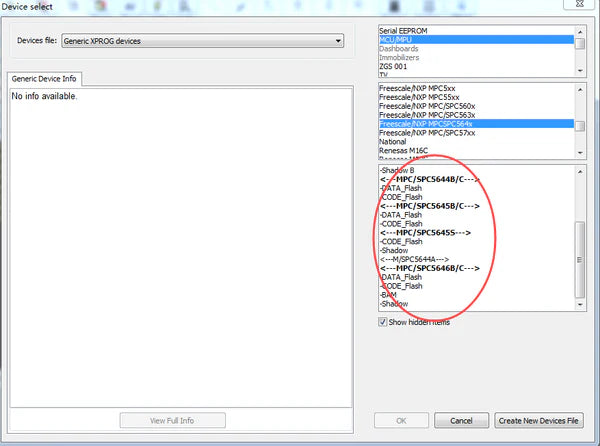

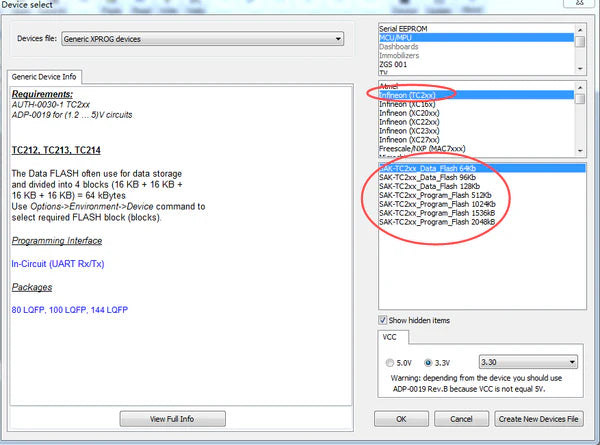

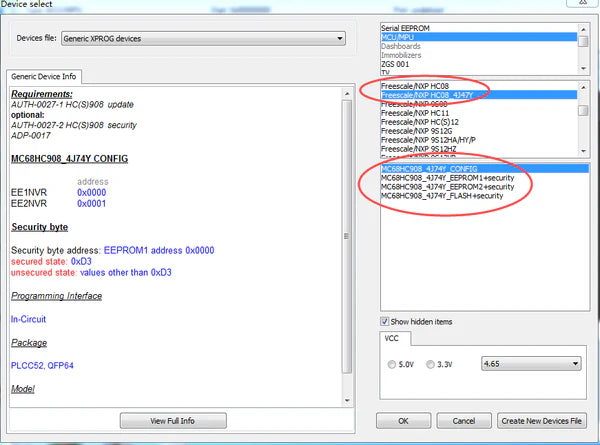

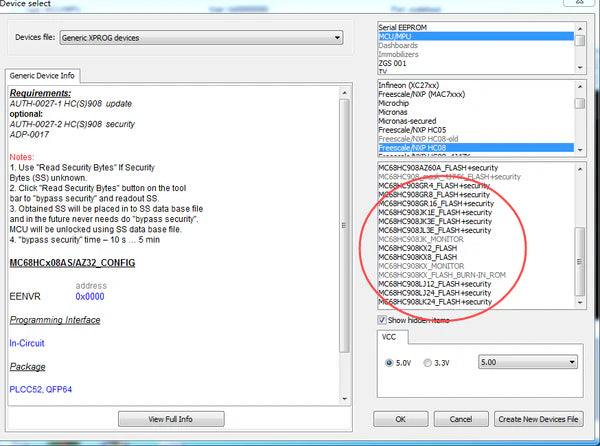

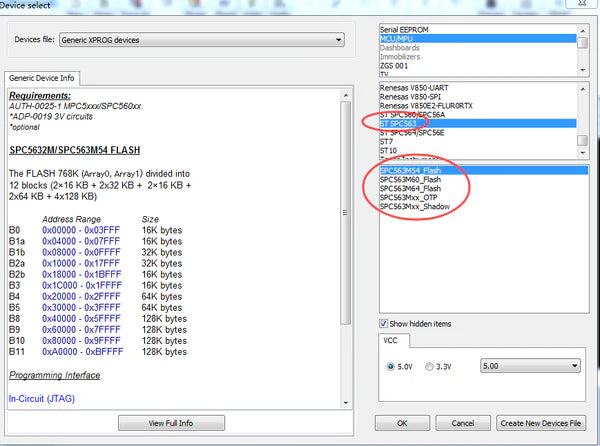

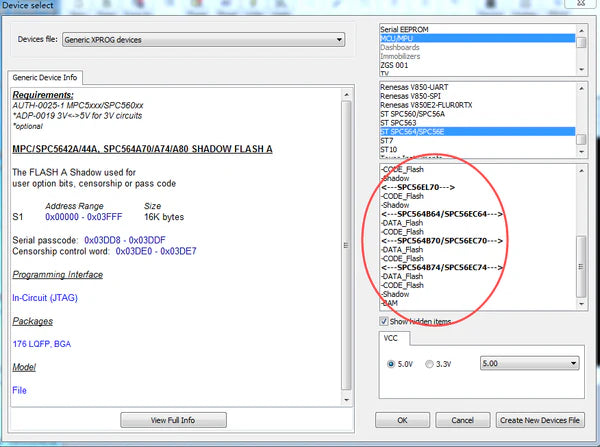

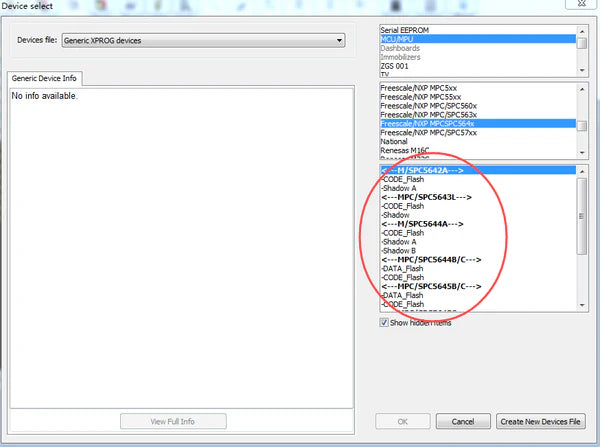

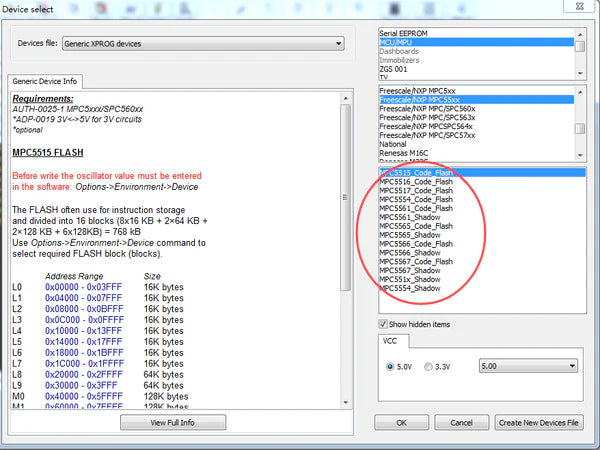

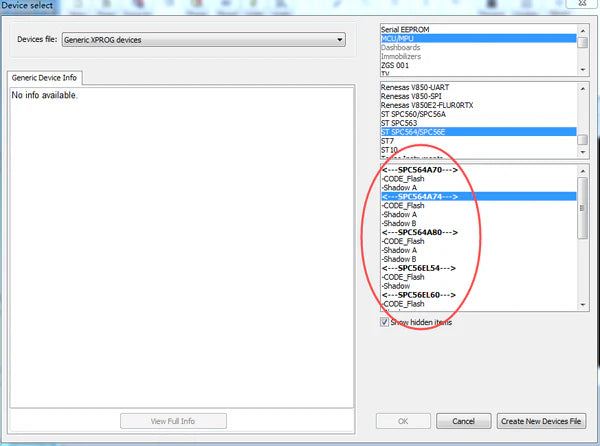

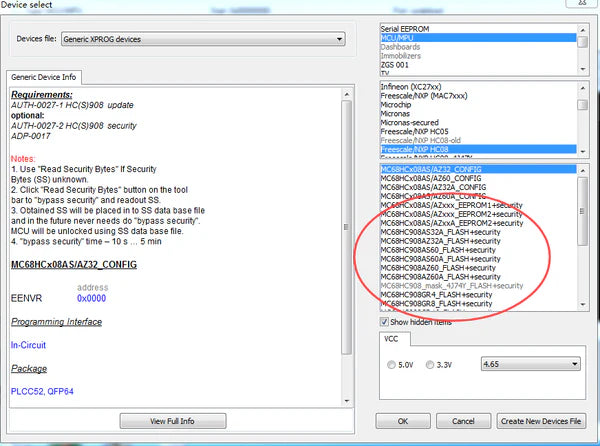

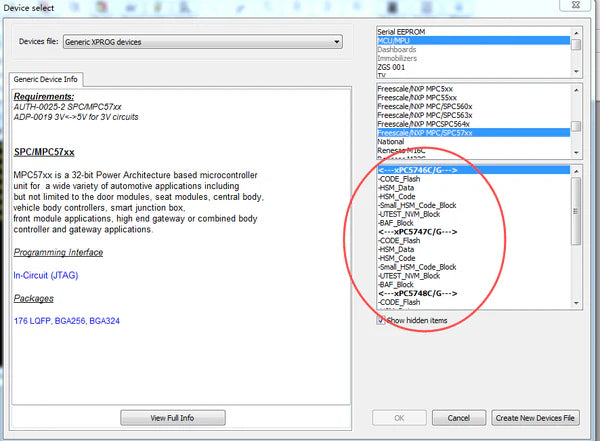

XPROG-M V6.50 Software Add New Authorizations and Chip Supported List Part Display:

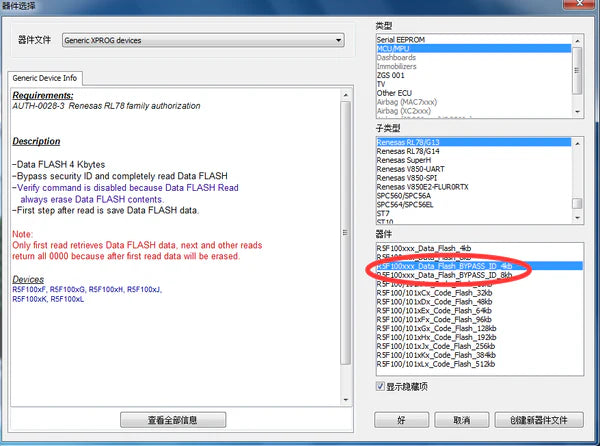

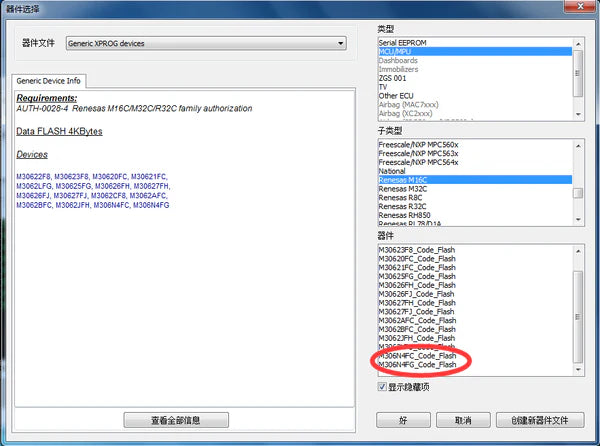

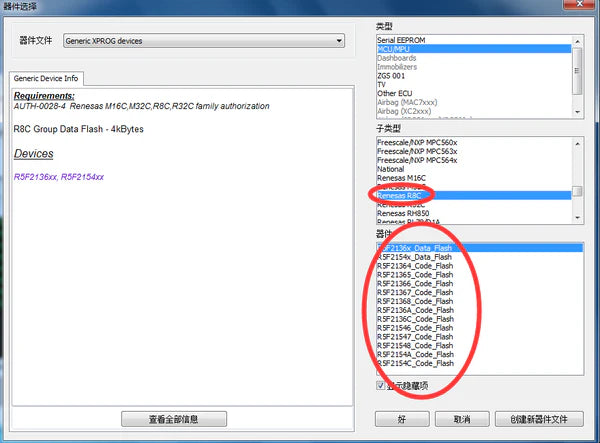

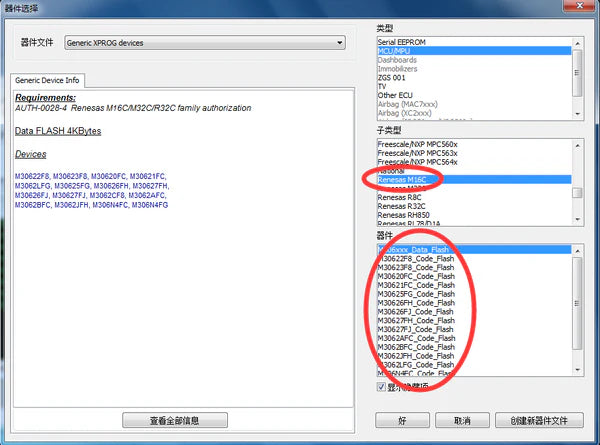

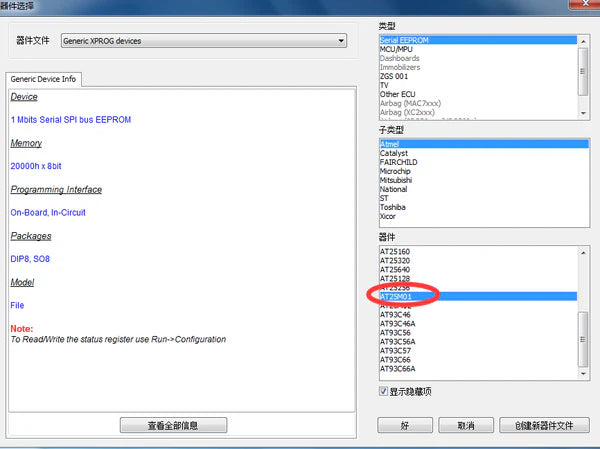

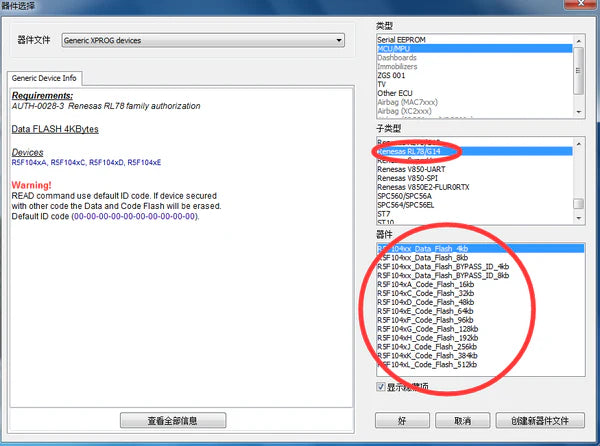

XPROG-M V6.26 Software Add New Authorizations and Chip Supported List Part Display:
XPROG M V6.50 V6.26 Package List:
1pc x XPROG-Box Hardware (Aluminum Enclosure)
20pcs x Adapters Set ( The picture shall prevail.)
1pc x USB Cable.
1pc x USB Dongle
1pc x CD Software
FAQ:
Q1: What is firmware version ?
A1: Firmware: V5.9
Q2: How it is working: online or offline ?
A2: It is Work offline
Q3: Is it upgradable in future ?
A3: Cannot be updated.
